Product decription
YD-2000 series differential pressure gauge minimum range 0-30Pa,
maximum range 0-30KPa. There are as many as 88 kinds of range and
metric / imperial units to choose from.
This differential pressure gauge using frictionless magnetic
components, can rapidly measure the micro-pressure air or
non-corrosive gases, including positive, negative (vacuum) or
differential. No wear, hysteresis and clearance. Not filling,
vaporization and freezing. This design has anti-vibration,
anti-shake and high overpressure capability, you can guarantee
access to high precision.The design impact, shock and overload
protection
Product Specification
1 Medium: air and non-combustible, compatible gases (optional gas)
2 Housing: cast aluminum housing or ABS shell, glass beveled
panels. Dark
gray coating, can withstand 168 hours salt spray test
3 Accuracy: 2% FS (mm units, and the range with the corresponding
pa)
4 Pressure range:. -20Hg To 15 psig (-0.677 bar to 1.034 bar)
5 Temperature range: 20 to 140 ° F (-6.67 to 60 ° C)
6 Hole size: 114mm
7 Mounting Orientation: Diaphragm in vertical
8 Connections: same 1/8 "NPT high and low pressure fittings, one
pair on the
side, one pair in the back
9 Weight: 500g / only
10 Standard accessories: two 1/8 "NPT threaded connectors for high
and low
pressure fittings can be connected with a rubber tube; two 1/8" NPT
plug for
blocking the remaining two high and low pressure ports; three a
threaded
countersunk mounting coupling (mounting ring, according to buckle
holder for
three interfaces to replace MP and count on attachments HP)
Application
For medical and health, microelectronics, aerospace, environmental
engineering, bio-engineering, pharmaceuticals, building
intelligence, HVAC, food and beverage, precision electronic
processingFor medical and health, microelectronics, aerospace,
environmental engineering, bio-engineering, pharmaceuticals,
building intelligence, HVAC, food and beverage, precision
electronic processing

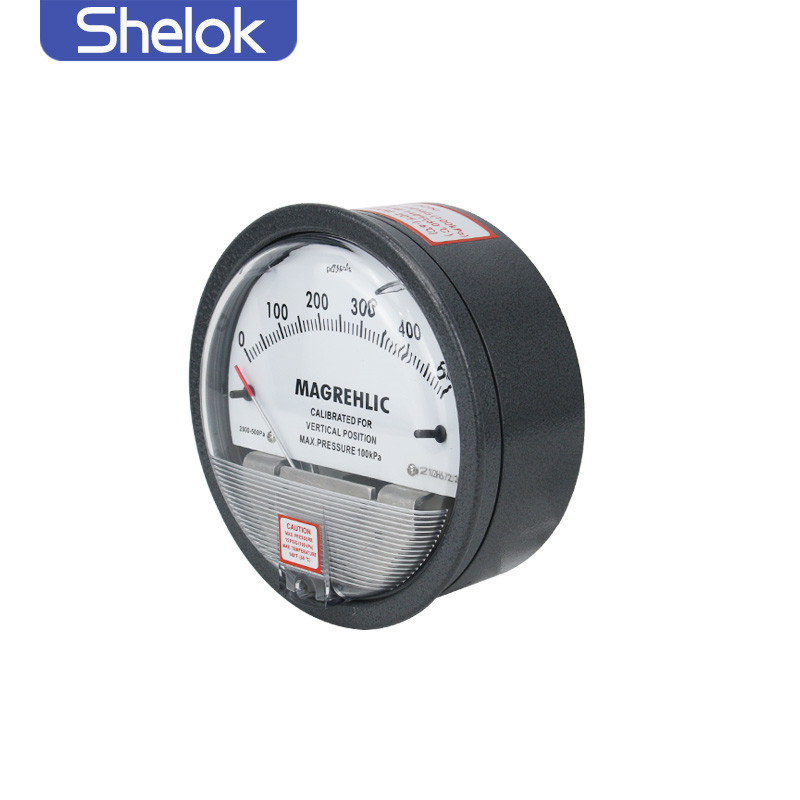

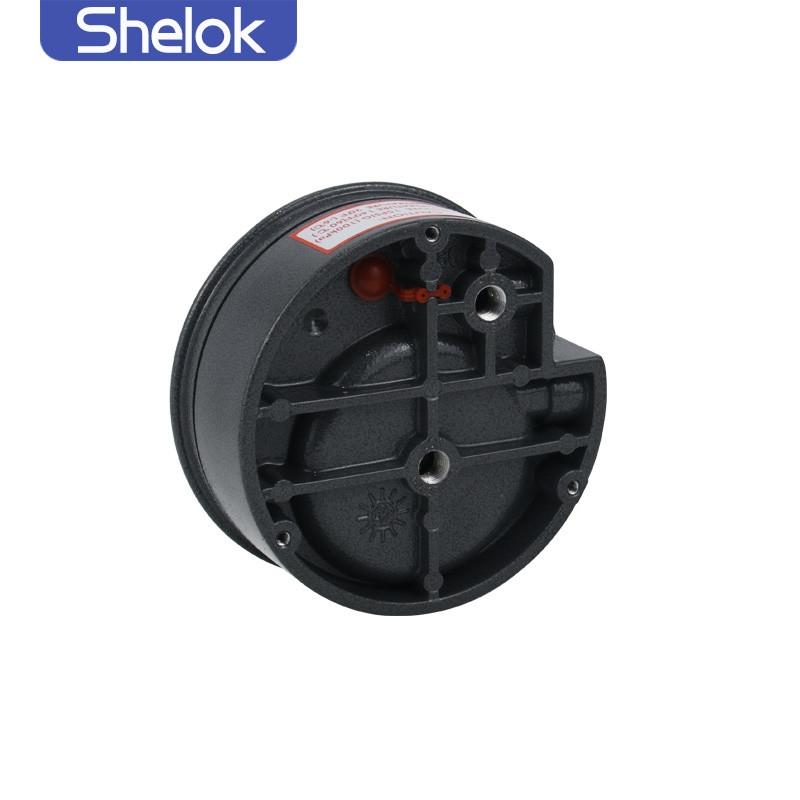

Product Images
Company Information
Xian Yunyi Instrument Co., Ltd. is a professional manufacturer that
engaged in the fields of pressure measurement instrument, the chief
engineer, Mr Tian has more than 30 years experience on this area,
and he is one of the engineers who introduced the Rosemount
technology.
We are specialized in developing pressure transmitter, etc. They
are widely used in chemical, petroleum, paper, electricity, city
gas, environmental protection, water treatment and other fields.
