    LCD Display Ultrasonic Open Channel Flow Meter RS232 DC12V

    Ask Lasest Price
    Brand Name : yunyi
    Model Number : YD322-F
    Certification : ce
    Price : $289/pcs
    Payment Terms : L/C, D/P, T/T, Western Union
    Supply Ability : 1000pcs/month
    Delivery Time : 10days
    • Product Details
    • Company Profile

    LCD Display Ultrasonic Open Channel Flow Meter RS232 DC12V

    Ultrasonic Open Channel Flow meter


    Description Ultrasonic Open Channel Flow meter

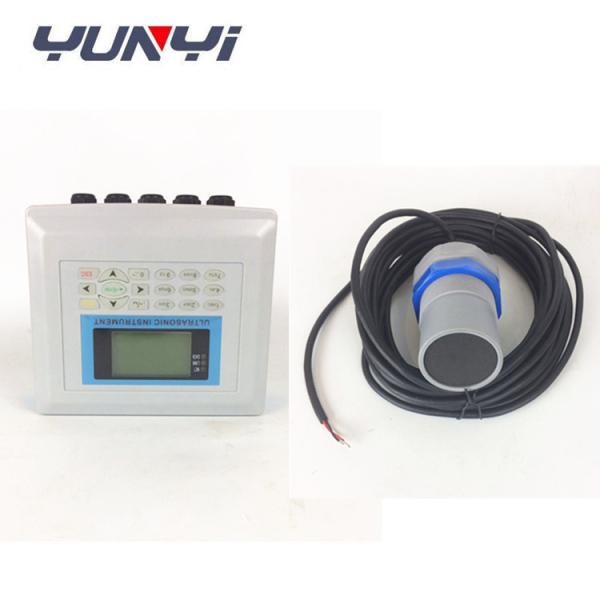

    It consists of two elements, a host, which has display and an integral keypad for programming, and a transducer, which must be mounted directly above the surface to be measured. It can be widely applied to the environmental protection, water treatment, irrigation, chemical, and other industries.


    Specification Ultrasonic Open Channel Flow meter


    Display resolutionbased on input signal
    Calibrationfactory calibration or on-site calibration
    DisplayLCD
    Voltage outputDC12V or 24V
    Signal outputRS485/RS232, 4~20mA
    Work voltageAC160V~250V
    Normal power consumption<5W
    Work temperature0~50℃
    Humidity≤85RH
    Pressurenormal

    Features Ultrasonic Open Channel Flow meter


    Low sensor power consumption, easy installation and orientation, application wildly ,standard 4-20mA output, use it separately as liquid level meter
    Easy operation, widely used in thin plate right-angle weir, triangular weir, parshall flume and so on. When power off, it can save 10 years.
    Base on user's demand, it can attach flash disk, micro printer and storage battery.


    Applications Ultrasonic Open Channel Flow meter

    Right-angle rectangular weir,

    Triangular weir,

    Width weir,

    Parshall flume
