4 digits LCD display digital pressure gauge
Description 4 digits LCD display digital pressure gauge
4 digits LCD display digital pressure gauge is a new product of our
company, is mainly designed
and produce for measurement work, with characteristic of high
acquisition frequency, good
stability, small precision loss, is most popular with the measuring
workers.

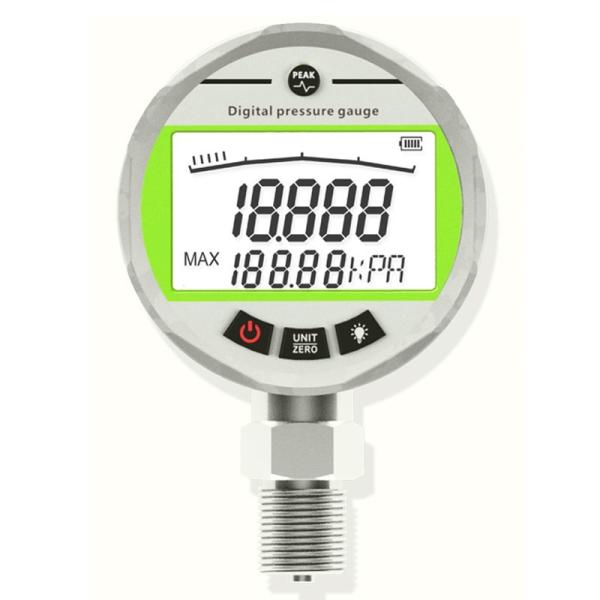

Detailed picture of 4 digits LCD display digital pressure gauge
Specification of 4 digits LCD display digital pressure gauge
| Item | 4 digits LCD display digital pressure gauge |
| Dial size | 60mm, 80mm, 100mm |
| Pressure ragne | -100kpa~0~100MPa |
| Body material | SS304 |
| Thread material | SS304 |
| Power supply | 4.5V, 3AAA battery |
| Accuracy | 0.2, 0.4, 1%FS |
| Medium temperature | -20~80C |
| Thread size | 1/4NPT, G1/4, 1/2NPT, G1/2, M20*13, 1/8NPT |
| Optinal function | RS485 |
| Mount | Bottom mount or back mount |
Features 4 digits LCD display digital pressure gauge
1.Visual display the bar charts of pressure percentage
2.Can realize the self calibration correction
3.Acquisition speed can be set to (0.3~10) s/time
4.The battery life of up to 5 years
5.The technology of signal isolation and Anti electromagnetic and
Radio frequency interference
6.Zero self stabilization technology, temperature compensation
technology
Model
selection 4 digits LCD display digital pressure gauge
YK-102 | Code | Accuracy | | |
| A | 0.05 |
B | 0.1 |
C | 0.2 |
D | Flange |
E | Special Accuracy |
| Code | Connection mode |
1 | M20*1.5 |
2 | 1/2NPT |
3 | M14*1.5 |
4 | G1/2 |
5 | Special connector |
| Code | Pressure type |
G | Gage pressure |
D | Differential pressure |
A | Absolute pressure |
YK-100 | A | 1 | G |
FAQ
Q:How long will you
reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market
test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the
prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and
10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished
goods) + good warranty service(1 year free to change a new one
without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And
before the delievry of goods, quality and safety inspection
certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure
for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional
R&D dept which can provide professional solutions for you.
