Description digital vacuum pressure switch
High quality digital vacuum pressure switch for oil, water, air,
gas is an intelligent digital pressure switch setting pressure
measurement, pressure display, control in one professional unit. digital vacuum pressure switch has followed features: easy operation, good shock resistance, high
precision, long-term stability.
digital vacuum pressure switch can realize the control function: low pressure to stop, the high
pressure to start or the high pressure to stop, the low pressure to
start. The control pressure can be set up in the whole range. digital vacuum pressure switch also has the followed functions: delay control, reverse control,
three pressure units to change, one key to error clearing, leakage
pressure protection, password protection, pressure detection
automatically.
digital vacuum pressure switch is widely used in building water supply, hydraulic pressure
control, supporting equipment of automated machine.
Specification digital vacuum pressure switch
| Pressure Range | 0-0.2...0.6...1...1.6...2.5...5...10...25...40...60Mpa |
| Overload Pressure | 150% |
| Acc. | 0.5%FS |
| Supply | 24VDC, 220VAC, 380VAC (Selectable) |
| Alarm Point Set | Any point can be set within the range. |
| Output Signal | Relay signal |
| Load Capacity | 380V 3A 220V 5A 24V 5A |
| Sampling Frequency | 5 Times/sec |
| Operation Temperature | -20℃~80℃ |
| Measurement Medium | Liquid, gas compatible with 316L stainless steel. |
| Connection Protection | Reverse protection, short-circuit protection |
| Connector | M20*1.5, G1/2, G1/4 (selectable) |
| Outlet Line | Power: red blue Output: black white |
APPEARANCE&CONNECTION METHOD

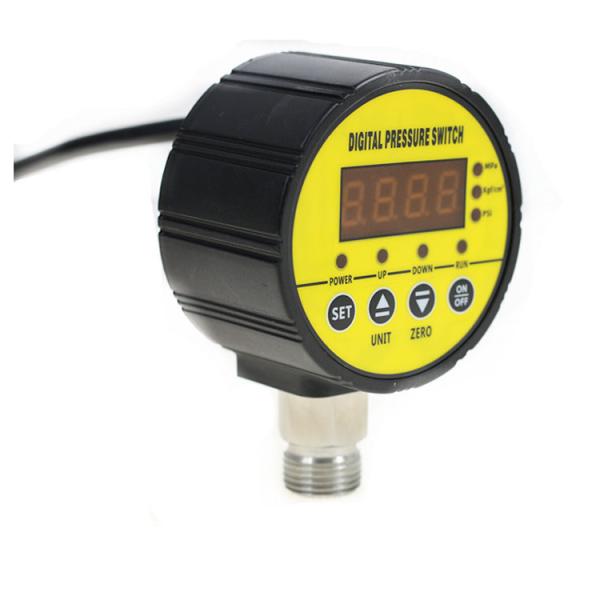

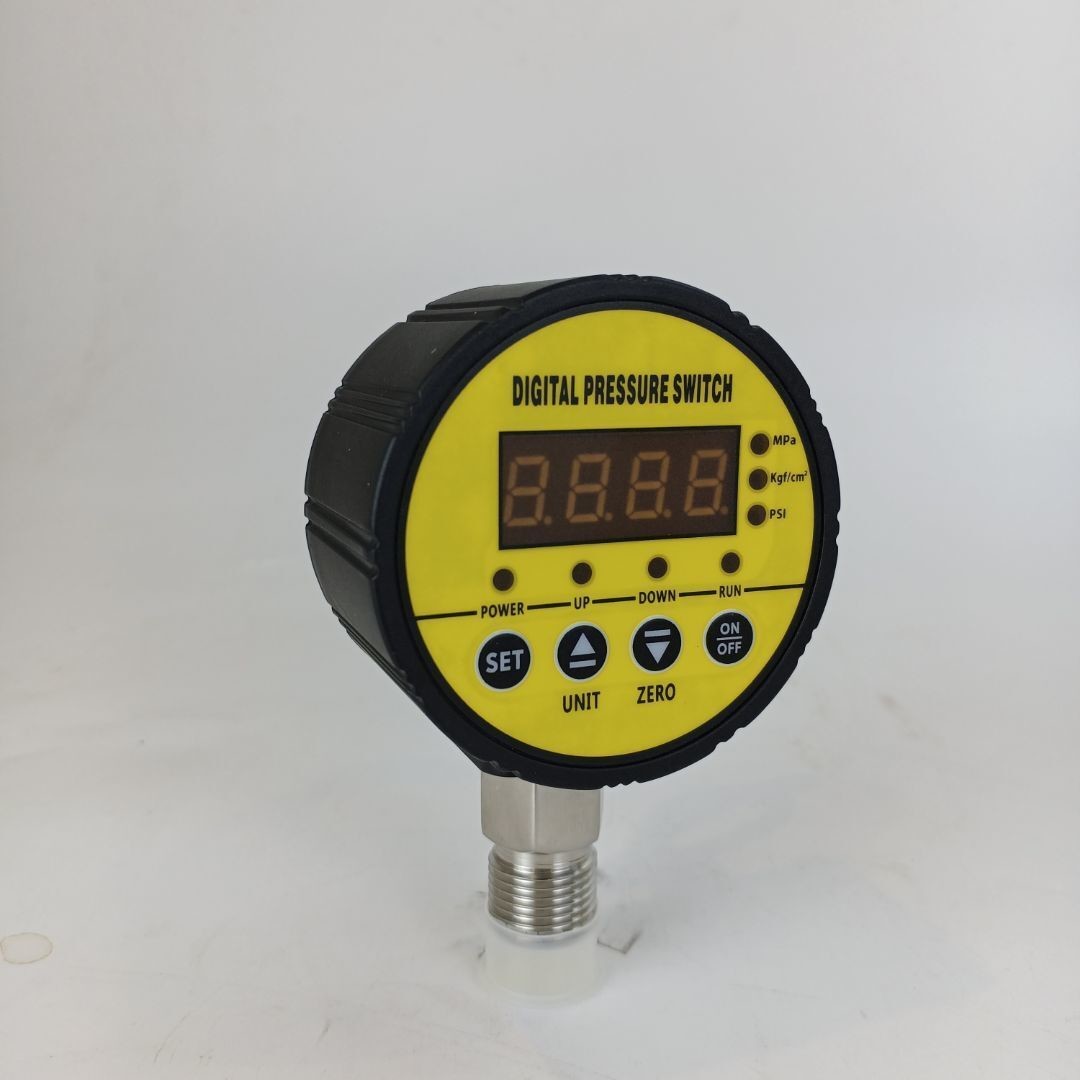

Detailed Images digital vacuum pressure switch
FAQ
Q: How long will you reply me?
A: We will contact you as soon as possible but within 12 hours.
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market
test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the
prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and
10-15 days for big order.
Q: How do you control your quality ?
A: Three inspection steps(of original, production, and finished
goods) + good warranty service(1 year free to change a new one
without any human damage factors).
Q: What certificates do you have ?
A: ISO9000, CE, Explosion-proof certification, RoHs ready. And
before the delievry of goods, quality and safety inspection
certification issued by third parts also can be offered.
Q: Could I visit your factory?
A: Very welcome! Fly to Xian Yang air port. It was a big pleasure
for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q: Can you provide OEM & Customized service?
A: Yes, OEM and ODM are both available, we have the professional
R&D dept which can provide professional solutions for you.
