factory 0.02 high precision digital oil pressure gauge sensor
Description

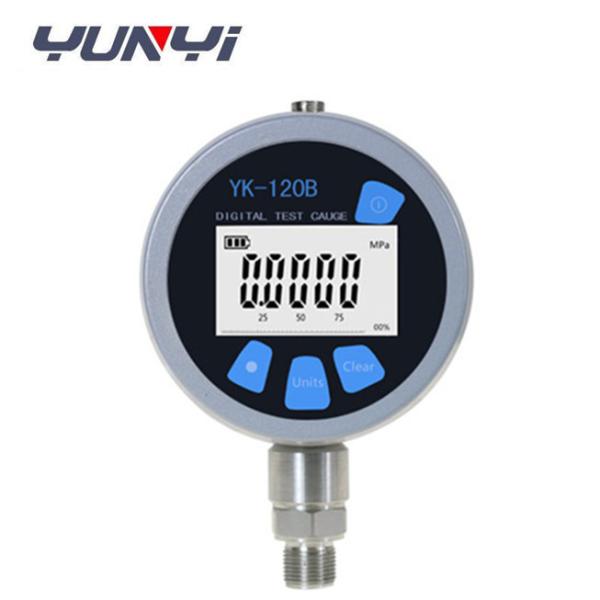

YK-102B Calibration standard digital pressure gauge imported
sensor, superior performance, high accuracy, corrosion resistance,
impact resistance, anti-
vibration, high stability,etc.; signal processing circuitry using
the latest ultra-low-power processors,signal processing and power
management chip chips, using a large capacity,high performance
lithium battery-powered, no external power supply. 5 percentage
using the digital display and analog display, intuitive readings,
the product precision can reach 0.05 for ordinary pressure gauge,
precision
pressure gauge and pressure transmitter calibration and test,
instead of the more traditional mechanical pointer pressure
table-site measuring pressure.
Features 0.02 high precision digital oil pressure gauge sensor
1.Micro-power, high accuracy, high-definition digital LCD ;
2.Small size, simple operation, easy field calibration pressure
gauges and precision pressure measurement using;
3.Intelligent calibration, linear repair, two seconds and zero
magnetic induction pen
4.LCD display with dynamic pressure, visual display percentages
pressure
5.Pressure unit: kg/m2 ,psi ,kPa ,MPa, bar pressure
6.Dynamic pressure measurement can be displayed online curve.
Specification 0.02 high precision digital oil pressure gauge sensor
| Scale Range | -0.1~0~250MPa | Accuracy | 0.02%, 0.05%, |
| Overload capacity | 200% | Pressure Type | Vacuum,Gauge,Absolute Pressure |
| Stability | ≤0.1%/year | Battery voltage | Chargable high energy 3.7v lithium battery |
| Display | LCD,5characters | Display range | -19999~99999 |
| Ambient temperature | -20°C~70°C | Relative humidity | ≤80% |
| Connection size | M20x1.5 Male or oem | Pressure unit | MPa,Kpa,PSI,Bar, kgf/cm2 |
| Case material | SS | Medium temp | -10~80°C |
Dimension drawing 0.02 high precision digital oil pressure gauge sensor
Selection 0.02 high precision digital oil pressure gauge sensor
| YK-120B | Base model |
| | Code | Accuracy level |
| | S1 | 0.05 |
| | S2 | 0.02 |
| | | Code | Pressure Range |
| | | See Table 1 G stand for Gauge pressure A stand for Absolute
pressure |
| | | | Code | Thread size |
| | | | M1 | M20*1.5 |
| | | | M2 | G1/2 |
| | | | M3 | G1/4 |
| | | | M4 | NPT1/2 |
| | | | M5 | NPT1/4 |
| | | | M6 | M14*1.5 |
| | | | M7 | Other |
| YK-120B | | S1 | G17 | M1 | Stand for 25Mpa 0.4 digital pressure gauge |
| Code | Range | Code | Range | Code | Range | Code | Range |
| G1 | 10KPa | G2 | 40KPa | G3 | 60KPa | G4 | 100KPa |
| G5 | 160KPa | G6 | 200KPa | G7 | 250KPa | G8 | 400KPa |
| G9 | 600KPa | G10 | 1MPa | G11 | 1.6MPa | G12 | 2.5MPa |
| G13 | 4MPa | G14 | 6MPa | G15 | 10MPa | G16 | 16MPa |
| G17 | 25MPa | G18 | 40MPa | G19 | 60MPa | G20 | 100MPa |
| G21 | -100KPa | G22 | ±100KPa | G23 | ±50KPa | G24 | other |
