Model MF4000 3mm 8mm Manifold gas flow sensors MEMS Mass Flow Meter

Description of Manifold gas flow sensors MEMS Mass Flow Meter

MF4000 series mass flow meters are designed for applications where manifold flow measurements. The standard flow channels are 3 mm and 8 mm in diameter, respectively. Plastic finishing with an easy change of the mechanical adaptors enables applications at a low cost and different environments. The meters can be used for process gas control, environmental samplers and many other industrial applications.

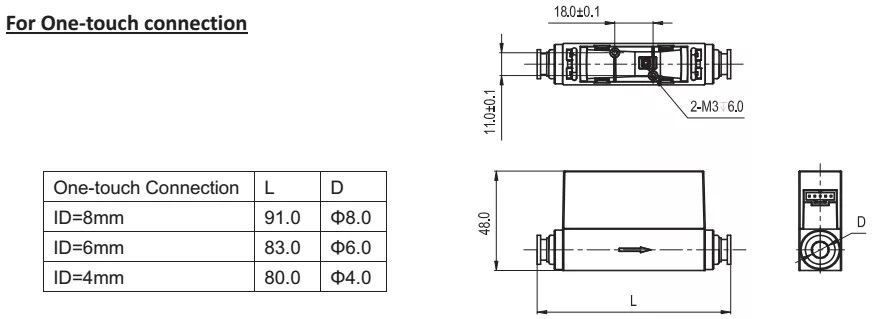

Detailed Images of Manifold gas flow sensors MEMS Mass Flow Meter

Feature of Manifold gas flow sensors MEMS Mass Flow Meter

Designed for low gas flow in fixed flow channel of 3 mm and 8 mm, with accumulated flow register

Compact design ready for manifold assembly

Fast response time for solutions of critical applications

Excellent for manifold process gas monitor and control

Exchangeable mechanical connectors for easy installation at different applications

Specification of Manifold gas flow sensors MEMS Mass Flow Meter

Parameter	MF4003		MF4008	Unit
DN	3		8	mm
Flowrate Range		0 ~ 2, 3, 4, 5 0 ~ 10, 20, 30, 40, 50		SLPM
Turn-down		100:1
Accuracy		± (1.5 + 0.2 FS)		%
Repeatability		0.25		%
Null Shift		± 30		mV
output Shift		± 0.12		% /ºC
Response Time		10 (default, 10, 20, 50, 200, 500, 1000 selectable)		msec
Power Supply		8 ~ 24 Vdc, 50 mA
output		Linear: Analog 0.5 ~ 4.5 Vdc; RS232, RS485
Display		4 - digit, 7 - segment LED; 2 status LED
Units		1nstant flowrate: SLPM; Flow accumulation: SL
Display Resolution		0.001, 0.01, 0.1 selectable 0.01, 0.1 selectable		SLPM
Pressure Drop		100 600		Pa
Max. Pressure		0.5		MPa
Working Teperature		-210 ~ +655		ºC
Storage Teperature
Humidity		< 95%RH (No icing or condensation)
Mechanical Connection		BSPT 1/4 (R 1/4), 4 mm / 6 mm / 8 mm one - touch BSPT 1/4 (R 1/4)
Keyboard		3 Keys
Pins out		5 Pins, NS-TECH CD R-5
Calibration**		Air @ 20 ºC, 101.325 kPa
Weight		55(with BSPT 1/4 (R 1/4)), 74(with 4 mm / 8 mm one-touch), 71(with 6 mm one-touch)

Calibration** Air @ 20 ºC, 101.325 kPaNotes: * The above parameters are applicable at 20o C and 101.325kPa.
** For other gases calibration, please contact siargo.

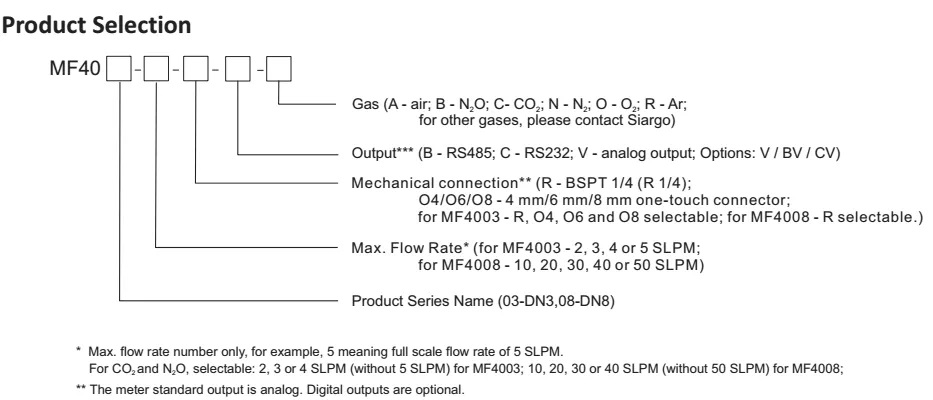

Order guide of Manifold gas flow sensors MEMS Mass Flow Meter
