Description of MF5600 digital Air gas mass oxygen flow meter for
hospital oxygen system
The MF5600 digital air gas mass flow meter are specifically
designed to meet the needs of applications that require separation
of display and body. For example, the hospital oxygen system small
air separation system. The flow meter's standard industrial user
interface (RS485 / 4 ~ 20mA) and user-defined alarm functions to
achieve better remote or network monitoring. The existing product
MF5612 and MF5619 can measure 0-300SLPM and 0-800SLPM gas flow
respectively.
Detailed Images of MF5600 digital Air gas mass oxygen flow meter for hospital oxygen system
| Parameter | MF5612 | MF5619 |
| DN | 12mm | 19mm |
| Maximum flow | 200, 300 SLPM | 600, 800SLPM |
| Minimum flow | 0.3SLPM | 0.8 SLPM |
| Range ratio: | 100:01:00 | |
| Accuracy: | ± (1.5+0.2FS)% |
| repeatability | ± 0.5% |
| Max pressure | 1.0MPa |
| Operating Temp. | -10~+55℃ |
| Humidity | <95% RH (no icing, no condensation) |
| Power Supply | 12~24 Vdc, 50mA |
| output | 4-20mA, RS485, Pulse |
| Mechanical connection | 1/2NPT, 3/4NPT |
| Calibration conditions | air, 20oC, 101.325 kPa |
Specification of MF5600 digital Air gas mass oxygen flow meter for hospital oxygen system

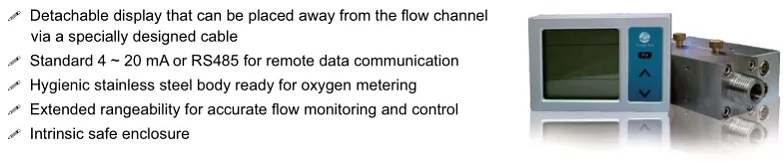

Feature of MF5600 digital Air gas mass oxygen flow meter for hospital oxygen system
1. Remote display can be installed through a specially designed
connecting cable away from the gas pipeline
2. Flowmeter comes standard with RS485 communication module,
optional 4 ~ 20mA standard current output, PULSE pulse output
3. Smooth stainless steel tube is conducive to oxygen measurement
4. Large range is conducive to monitoring gas flow
5. Built-in security plug-ins make installation easy
Application of MF5600 digital Air gas mass oxygen flow meter for hospital oxygen system
Gas mass flow meter is a new type of instrument for measuring and
controlling gas mass flow. It can be used for the monitoring of
air, hydrocarbon gas, flammable gas and flue gas in the petroleum,
chemical, steel, metallurgy, electric power, light industry,
medicine and environmental protection industries.
1. Industrial pipeline gas mass flow measurement
2. Chimney exhaust gas flow rate measurement
Calcination furnace flue gas flow measurement
4. Gas process air flow measurement
Compressed air flow measurement
6. Half-way chip manufacturing process gas flow measurement
7. Sewage gas flow measurement
8. Heating ventilation and air conditioning system in the gas flow
measurement
9. flux recovery system gas flow measurement
Burning boiler combustion gas flow measurement
11. Natural gas, flare gas, hydrogen gas flow measurement
12. Measurement of carbon dioxide gas flow during beer production
13. Cement, cigarettes, glass production process gas mass flow

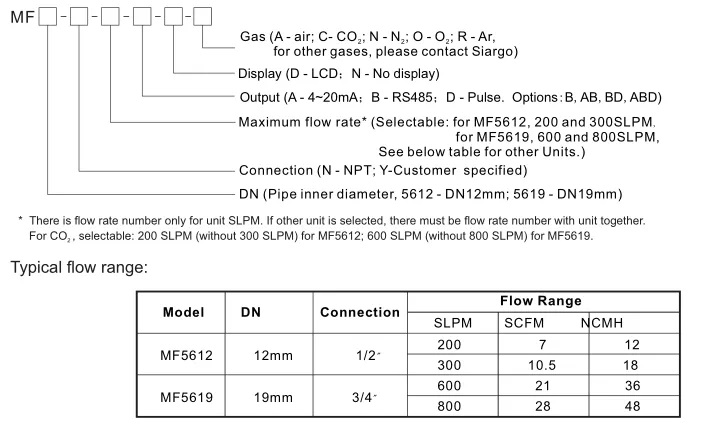

Selection Guide of MF5600 digital Air gas mass oxygen flow meter for hospital oxygen system
Dimension of MF5600 digital Air gas mass oxygen flow meter for hospital oxygen system
Accessaries of MF5600 digital Air gas mass oxygen flow meter for hospital oxygen system
