Industrial Clamp Flange Turbine Flow Meter For Water

Ask Lasest Price
Brand Name :	Yunyi
Model Number :	LWGY
Certification :	/
Price :	$200~$600
Payment Terms :	T/T, Western Union
Supply Ability :	200 Piece/Pieces per Month
Delivery Time :	10 works day

Add to Cart

Product Details
Company Profile

Industrial Clamp Flange Turbine Flow Meter For Water

Description China Clamp Flange Turbine Flow Meter Hot Sale

LWGY series liquid turbine flowmeter is a kind of speed instrument, which has the advantages of high accuracy, good repeatability, simple structure, small pressure loss and convenient maintenance. It is used to measure the volume flow of low viscosity liquid in closed pipe. In the petroleum, chemical, metallurgy, water supply, paper and other industries with a wide range of applications.

Detailed Images China Clamp Flange Turbine Flow Meter Hot Sale

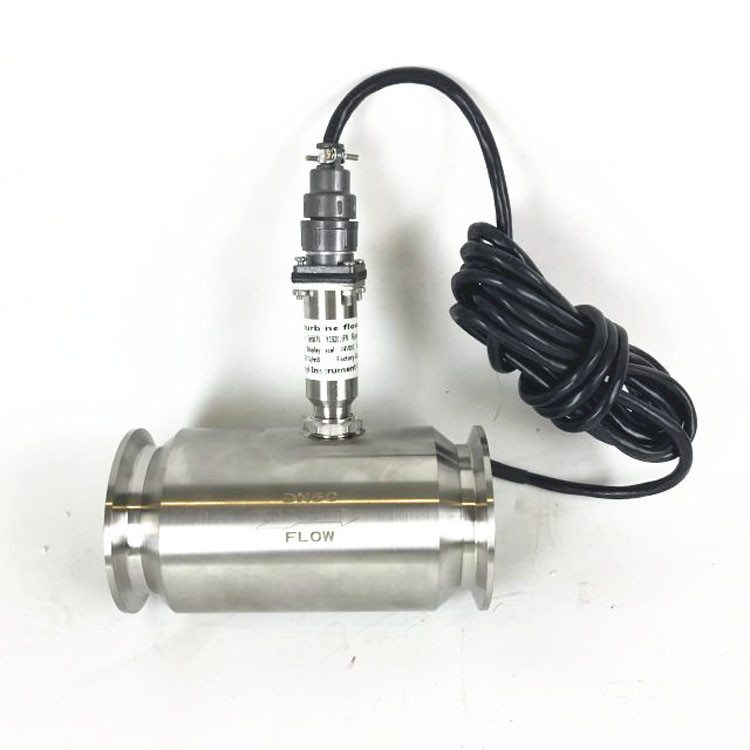

Industrial Clamp Flange Turbine Flow Meter For Water

Specification China Clamp Flange Turbine Flow Meter Hot Sale

Measure medium:	liquid or gas
Nominal diameter:	DN4 -- DN200mm
Measurement accuracy:	0.2, 0.5, 1.0 (preferred)
Medium viscosity:	less than 5 × 10-6m2 / s (for the liquid with >5 × 10-6m2 / s , the flowmeter needs to be calibrated before using)
Nominal pressure:	1.0Mpa; 1.6Mpa; 2.5Mpa; 4.0Mpa; 6.3Mpa
Medium temperature:	-20 ℃ ~ +120 ℃ (stainless steel measuring tube)
Environmental conditions:	Ambient temperature: -20 ℃ ~ +60 ℃; Relative humidity: 5% to 95%; Atmospheric pressure: 86kPa ~ 106kPa;
Power supply:	3.6V lithium battery; 12VDC; 24VDC;
Output signal:	three-wire pulse output, two-wire 4-20mA output
Ingress protection :	IP65 (IP67, IP68 );
