Industrial Vacuum Digital Pressure Gauge High Precision 600bar

Ask Lasest Price
Brand Name :	Yunyi
Model Number :	YK-809
Certification :	/
Price :	$105
Payment Terms :	T/T, Western Union
Supply Ability :	500 Piece/Pieces per Month
Delivery Time :	10 works day

Add to Cart

Product Details
Company Profile

Industrial Vacuum Digital Pressure Gauge High Precision 600bar

Description High Precision Industrial Vacuum Pressure Gauge Digital Pressure Gauge 600bar

High Precision Industrial Vacuum Pressure Gauge Digital Pressure Gauge 600bar have full electronic structure and use battery-powered, so they are very easy for on-site installation. Specifically, front-end high-precision piezoresistive pressure sensor is used and the output signal is processed by the high-precision, low temperature drift amplifier, then sent into the high-precision A/D converter to be converted into digital signal, after computing and processing the actual pressure value is showed on the LCD display.

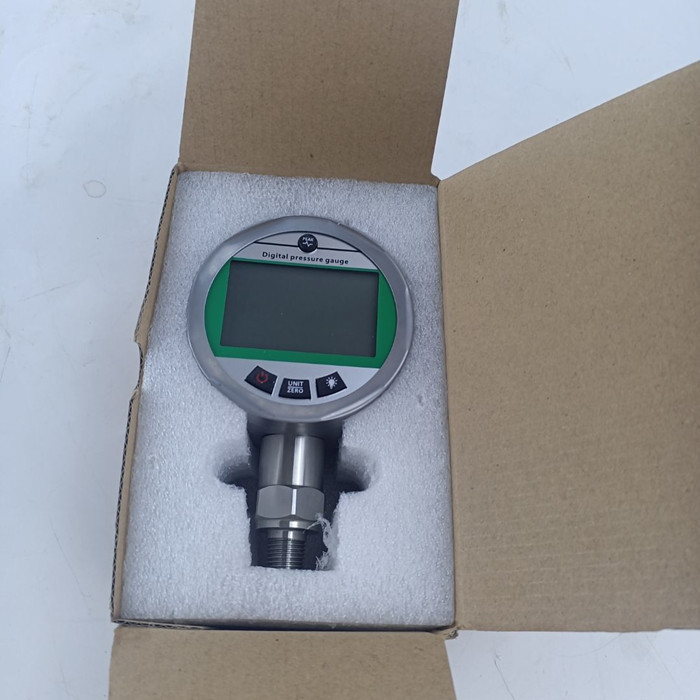

Detailed Images High Precision Industrial Vacuum Pressure Gauge Digital Pressure Gauge 600bar
Industrial Vacuum Digital Pressure Gauge High Precision 600bar

Specification High Precision Industrial Vacuum Pressure Gauge Digital Pressure Gauge 600bar

Scale Range	-1~0~600bar	Accuracy	0.25%
Overload capacity	200%	Pressure Type	Gauge Pressure
Stability	≤0.1%/year	Battery voltage	4.5V, 3AAA battery
Display	LCD display	Display range	-1999~9999
Ambient temperature	-10℃~60℃	Relative humidity	≤80%
Connection size	1/4NPT, 1/2NPT	Pressure unit	MPa/KPa/Bar/Psi/mBar
Case material	ABS plastic	Medium temp	-20~50℃

Features High Precision Industrial Vacuum Pressure Gauge Digital Pressure Gauge 600bar

1. large-screen LCD display, high resolution, ignoring the error.

2. Peak Hold function, record the maximum pressure values during the measurement

3. Pressure on the percentage of dynamic display, (the progress bar display)

4. Choice of five engineering units: psi, bar, kpa, kg / square centimetre Mpa

5. Choose 0 ~ 15min auto-off feature.

6. Micro-power consumption, work more than 2 years in power-saving mode, 2,000 hours continuous work.

7. Parameter correction, correct zero and error in field application.

8. Limit the upper and lower range

9. Sampling rate: 4 times / sec

10. Applicable to a variety of gases and liquids compatible with stainless steel pressure measurement.
