Description Industrial Temperature inspection instrument Voltage current
monitoring instrument
9600seriesis launched in full product range with outstanding
specifications features high performance and high operating
functionalong with high visibility Color LCD display. Universal
input with high speed of sampling rate and high accuracy rating .
Measured data is stored into memory and support up to 48MB.

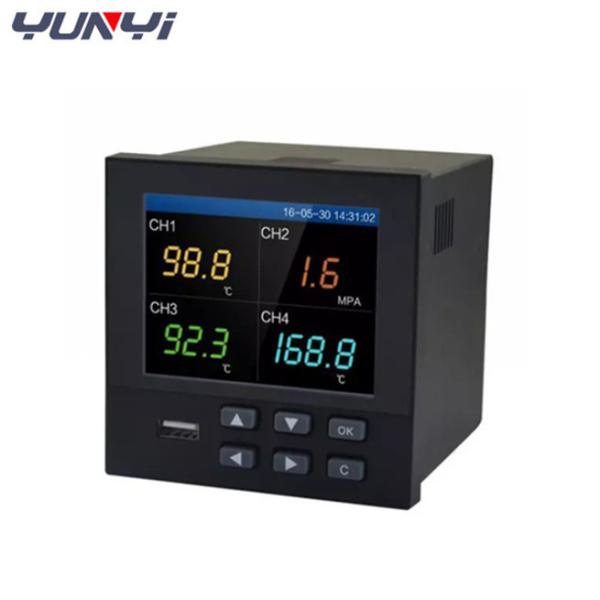

Detailed Images Industrial Temperature inspection instrument Voltage current
monitoring instrument
Specification Industrial Temperature inspection instrument Voltage current
monitoring instrument
| Input | Range | Measurement accuracy (%FS) | Display resolution |
| DCV | 1-5 V | ±0.1 | 1mv |
| DCA | (4~20)mA | ±0.2 | 1mv |
| (0~20)mV, (-20~20)mV,(0~100)mV | ±0.2 | 1mv |
Input(Thermocoupl e type) | Range (℃) | Measurement accuracy(℃) | Display resolution |
| B | 600 ~ 1800 | ±2.4 | 0.1°C |
| E | -200 ~ 1000 | ±2.4 | 0.1°C |
| J | -200 ~ 1200 | ±2.4 | 0.1°C |
| K | -200 ~ -100 | ±3.3 | 0.1°C |
| -100 ~ 1300 | ±2.0 | 0.1°C |
| S | -50 ~ 100 | ±3.7 | 0.1°C |
| 100 ~ 300 | ±2.0 | 0.1°C |
| 300 ~ 1600 | ±1.5 | 0.1°C |
| T | -200 ~ -100 | ±1.9 | 0.1°C |
| -100 ~ 380 | ±1.6 | 0.1°C |
| R | -50 ~ 100 | ±3.7 | 0.1°C |
| 100 ~ 300 | ±2.0 | 0.1°C |
| 300 ~ 1600 | ±1.5 | 0.1°C |
| N | -200 ~ 1300 | ±3.0 | 0.1°C |
| Input | Range(℃) | Measurement accuracy (℃) | Display resolution |
| Cu50 | -50 ~ 140 | ±1.0 | 0.1°C |
| Pt100 | -200 ~ 800 | ±1.0 | 0.1°C |
•Power supply
voltage range:176 to 264 VAC Rated power supply frequency:
47-63 Hz (automatic switching)
Power consumption: 20 VA (max., for 264 VAC power supply)
•Normal Operating Conditions
Ambient temperature: 0 to 50 °C
Ambient humidity: 10% to 85%
Feature Industrial Temperature inspection instrument Voltage current
monitoring instrument
Basic Functions
•Up to 18 channels of universal input
•UP to 4 Alarm Output Relays
•With 150mA Power distribution Output
•Communication type: RS485, Modbus RTU
•With a USB data transfer interface
Display & Operation
•Multiple display Function :choose the display your way
•Use date and time calendar search functions to Review historical
data .
•3.5 inch TFT color LCD (320 x 240pixels)
Reliability and Security
•Dust- and splash-proof front panel
•Power Fail Safeguard:All the data stored in Flash memory, make
sure that all the historical data and configuration para- meters
will not lost when power fail. Real time clock power supply by
lithium batteries.
Data Acquisition Software
•Software for varieties of tasks : analysis, settings, and
acquisition
Display & Display funcation Industrial Temperature inspection instrument Voltage current
monitoring instrument
Display unit: 3.5 inch TFT color LCD (320 x 240pixels) Background:
black
Back light:LED
Trend display type: Vertical, horizontal, digital,graph selectable
Display renewal rate: 1 s
User can change display object (trend, numeric, and bar graphs,
etc.)
•Data Saving Function Internal memory:
Medium: Flash memory Capacity: 48MB
Event data file sample time
Measurement CH=10 channels computation CH=0 channels
