Electromagnetic Velocity Meter Portable Water Quality Flow Level Meter

Ask Lasest Price
Brand Name :	Yunyi
Model Number :	Electromagnetic Velocity Meter
Certification :	CE
Price :	650~1080USD/PCS
Payment Terms :	T/T, Western Union
Supply Ability :	1pcs per week
Delivery Time :	5-8 work days

Add to Cart

Product Details
Company Profile

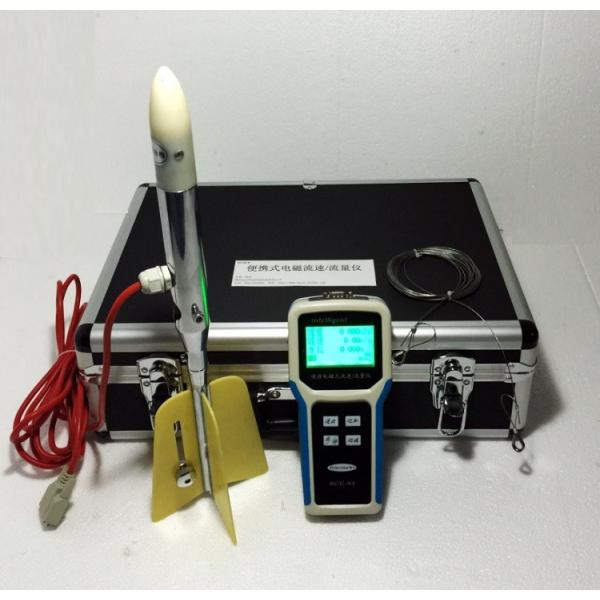

Electromagnetic Velocity Meter Portable Water Quality Flow Level Meter

Electromagnetic Velocity Meter Portable Water Quality Flow Level Meter

Description

Electromagnetic velocity flow meter adopts special designed exciting system sensor and high performance signal processing system. 16-bit low consumption embedded microprocessor and all digital signal processing ensure stable working, high accuracy, and strong anti-interference. It can be automatic two-way flow velocity measurement, multiple parameters display, self-diagnosis alarming, RS485(optional) and storage function.

Detail image

Electromagnetic Velocity Meter Portable Water Quality Flow Level Meter

Specification

Range: Velocity 0.005m/s～10m/s(resolution 5mm/s);

Accuracy: ±1.0%FR+0.005m/s;

Acquisition time: Auto 10S～900S adjustable, hand control time;

Power: 1.5V*5pcs NO.5 battery;

Display: LCD big screen back light display, flow(Ⅱ-model), accumulative total(Ⅱ-model), level(Ⅱ model), flow direction, electric quantity, alarm information,running time, running status;

Physical interface: RS485(optional);

Conductivity: >20µs/cm;

Medium temperature: 0℃～60℃;

Ambient temperature: -10℃～50℃;

Display digits: 3 digits(X.XXX);

Size:204*100*35mm(Display);

Size:Φ32×460(mm)(Sensor);

Measuring rod:Normal 500mm×Sections (500mm×optional sections) or lifting accessories.

Features

1.No movable parts, no winding. No choked flow, no maintenance, avoid troubles of other calibration and testing;

2. Micro-power design can last 80 hours when replace the battery(Ⅱ-model,optional for level sensor);

3. LCD big screen back light display shows measuring data clearly in sunlight and night；

4. The instrument interface display velocity,flow(Ⅱ-model), accumulative total(Ⅱ-model), level(Ⅱ-model), flow direction, electric quantity, alarm information,running time, running status；

5. Simple operation, wading rod measurement, wire measurement and sailing measurement are available choice.

6. Auto power shut off.
