Description MF4600 LED display Gas Mass Flow Meter Air Carbon Dioxide Nitrogen
Oxygen Argon
MF4600 series mass flow meters are made with Siargo's proprietary
MEMS sensing technology. 1t applies for clean and dry gas metering
and control. The meter is designed with the structure of a
rotameter but with the full capability of a digital gas mass flow
metrology and LED display. Both instant and accumulated flowrate
can be read and displayed. The front buttons let user to access and
adjust the parameters as well as stored data. The standard RS485
Modbus enables the remote access and integration.
Cumulative flow mode
1. It is represented by eight digits, and it is displayed in
split-screen mode, that is, the upper four digits are displayed
first (1-LED indicator light will be lit), and then switched to
display the lower four digits after 1 second (II-LED indicator
light will be on bright), the unit is SL;
2. The accumulated flow can be cleared by key operation.
Note: The accumulated flow value is not saved after the flowmeter
is powered off. Therefore, when the flowmeter is powered on again,
the accumulated flow is always calculated from 0SL, which is
equivalent to being automatically cleared.
Detailed Images MF4600 LED display Gas Mass Flow Meter Air Carbon Dioxide Nitrogen
Oxygen Argon
Specification MF4600 LED display Gas Mass Flow Meter Air Carbon Dioxide Nitrogen
Oxygen Argon
Features MF4600 LED display Gas Mass Flow Meter Air Carbon Dioxide Nitrogen
Oxygen Argon
1, Designed for low gas flow in fixed flow channel of 3 mm and 8
mm, with accumulated flow register
2, Direct mass flow measurement with high accuracy
3, Multiple sensing elements for extended rangeability over 100:1
4, Easy remote accessible user interface with RS485 Modbus and1or
linearized analog data
5, Bright LED display for instant and accunulated flowrate with
on-site access via front buttons
6, Record flowrate patterns with over range indication
7, Easy for remote communication and integration
8, Compatible with traditional rotameter mechanical connections
9, Flow range and mechanical dimensions can be fully customized

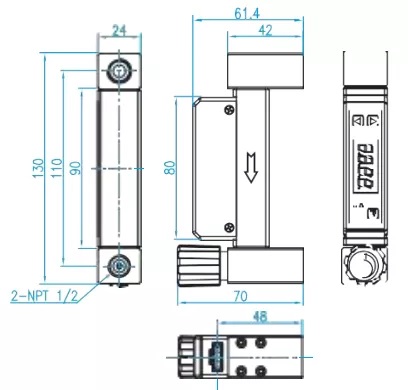

Dimension MF4600 LED display Gas Mass Flow Meter Air Carbon Dioxide Nitrogen
Oxygen Argon
Selection Guide MF4600 LED display Gas Mass Flow Meter Air Carbon Dioxide Nitrogen
Oxygen Argon
L1 | L2 | L3 | H1 | H2 | N* |
| MF4602(500sccm,1SLPM) | 73→80 | 58 | 36 | 134 | 94 | 2-N1,2-N2,2-R1 OR 2-R2 |
| MF4603(2,5SLPM) | | | | | | |
| MF4608(10,20,50 SLPM) | 80→86 | 64 | 42 | 138 | 90 | 2-N2,2-N3,2-R2 OR 2-R3 |
Flowmeter Installation Precautions MF4600 LED display Gas Mass Flow Meter Air Carbon Dioxide Nitrogen
Oxygen Argon
1. Before installing the flowmeter, the impurities in the pipeline
must be clear to avoid foreign objects entering and damaging the
flowmeter, and the inner wall of the pipeline should be cleaned of
dirt and fouling;
2. Do not loosen the fixed part of the flowmeter at will;
3. The protective ground wire in the output connection of the
flowmeter must be connected reliably;
4. After installation, it is not allowed to generate installation
stress on the flowmeter, so as not to damage the flowmeter;
5. The flowmeter should avoid working in the environment of strong
magnetic field interference and severe vibration;
6. The flow of the medium should be stable, the action should be
slow when operating the relevant valve, and do not open or close
quickly.
