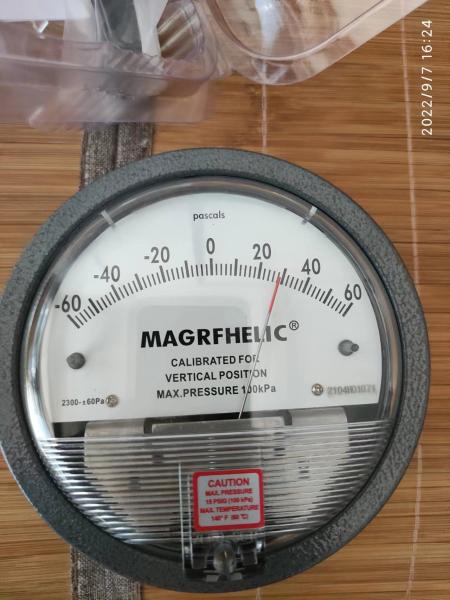

Anolog Air -60-60pa Differential Pressure Gauge
DescriptionAnolog Air -60-60pa Differential Pressure Gauge
Differential pressure measurement between clean rooms Differential
pressure measurement of clean room and clean workshop Negative
pressure measurement of furnace chamber Pressure measurement of
inlet and outlet of supply and induced draft fans Differential
pressure measurement before and after high, medium and low
efficiency filters
Uses: special instrument for GMP certification in the
pharmaceutical industry; used to measure the positive and negative
pressure difference of clean rooms in pharmaceutical factories and
electronic factories, special meters for HVAC, purification air
conditioners, purification typhoon shower rooms, and detection of
pressure difference of clean air conditioner filters, etc.
Parameter Anolog Air -60-60pa Differential Pressure Gauge
| Medium: | air and non-combustible, compatible gases (optional gas) |
| Housing: | cast aluminum housing or ABS shell, glass beveled panels. Dark gray
coating, can withstand 168 hours salt spray test |
| Accuracy: | 2% FS (mm units, and the range with the corresponding pa) |
| Pressure range:. | -20Hg To 15 psig (-0.677 bar to 1.034 bar) |
| Temperature range: | 20 to 140 ° F (-6.67 to 60 ° C) |
| Hole size: | 114mm |
| Mounting Orientation: | Diaphragm in vertical |
| Connections: | same 1/8 "NPT high and low pressure fittings, one pair on the side,
one pair in the back |
| Weight: | 500g / only |
| Standard accessories: | two 1/8 "NPT threaded connectors for high and low pressure fittings
can be connected with a rubber tube; two 1/8" NPT plug for blocking
the remaining two high and low pressure ports; three a threaded
countersunk mounting coupling (mounting ring, according to buckle
holder for three interfaces to replace MP and count on attachments
HP) |
Features Anolog Air -60-60pa Differential Pressure Gauge
It can measure fan and blower pressures, filter resistance, air
velocity, furnace draft, pressure drop across orifice plates,
liquid levels with bubbler systems and pressures in fluid amplifier
or fluidic systems. It also checks gas-air ratio controls and
automatic valves, and monitors blood and respiratory pressures in
medical care
equipment
Wide range choices available to suit your needs
Simple, frictionless movement, it quickly indicates low air or
non-corrosive gas pressures-either positive, negative or
differential
The design resists shock, vibration and over-pressures
No any fluid to evaporate, freeze or cause toxic and leveling
problems
It's inexpensive and high accuracy-guaranteed within 2% of full
scale
Optional mirrored scale overlay eliminates parallax reading error
Optional corrosion resistant brushed 304 stainless steel bezel
