380V water differential electric contact pressure gauge with NO/NC
Description of 380V water differential electric contact pressure gauge with NO/NC
CW100 and 150 Series Differential Pressure Gauge adopts the
long-life, anti-corrosion and high-elasticity sensing element as
well as precisely symmetrical force balancing mechanism and
high-sensitivity driving amplifier. It's advantaged by delicate and
exquisite appearance, high accuracy, excellent stability, strong
load capacity and other highlights. The deflection scale of
indicating value conforms to the measuring standard and is
protected by national patents. It applies to measure the pressure
difference under the same pressure source or different pressure
sources, and is extensively used for liquid and gas pressure
difference of non-crystalline medium in oil and gas filtering,
petrochemical engineering, metallurgical machinery, hydraulic
forging, water conservancy power, shipping and other industries.
Range optional of 380V water differential electric contact pressure gauge with NO/NC
0~15kpa(0~1500mmWC) 0~100kpa(0~10000mmWC)
0~20kpa(0~2000mmWC) 0~125kpa(0~12500mmWC)
0~25kpa(0~2500mmWC) 0~150kpa(0~15000mmWC)
0~30kpa(0~3000mmWC) 0~200kpa(0~20000mmWC)
0~50kpa(0~5000mmWC) 0~250kpa(0~25000mmWC)
0~75kpa(0~7500mmWC) 0~400kpa(0~40000mmWC)

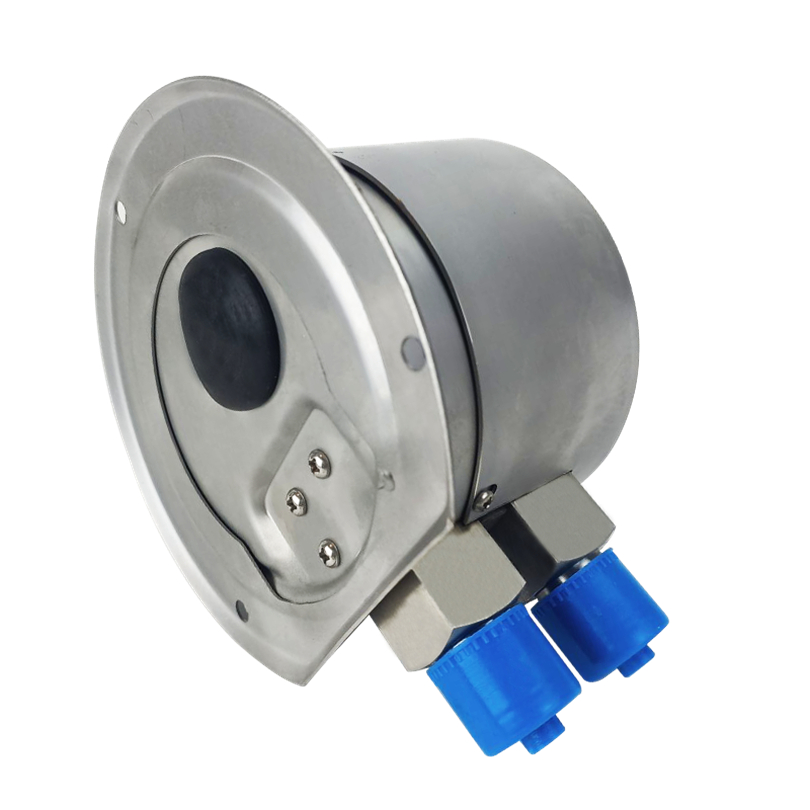

Picture of 380V water differential electric contact pressure gauge with NO/NC
Specification of 380V water differential electric contact pressure gauge with NO/NC
1, Nominal size: φ60, φ100, φ150, φ200
2, Accuracy grade: level 2.5.
3, Working ambient temperature: -50ºC~80ºC.
4, Working medium temperature: -100ºC~80ºC.
5, Max. static pressure: 10Mpa.
6, Material: 304 stainless steel.
7, Measurement range: any one of specification from 0~1kpa to 1MPa;
0~150kpa
8, Connecting thread of pressure joint:
(1) M14X1.5M20*1.51/2NPT external thread (or customized according
to user's requirement);
(2) Ferrule fitting;
9, Distance of connection thread: there are 35mm, 50mm, 54mm, 60mm
and other specifications of thread distance (or customized
according to user's requirement).
Feature of 380V water differential electric contact pressure gauge with NO/NC
1. High accuracy: Indication of the standard scale of 270 ° radian,
to meet the resolution of 1.6 precision. In the 2.5 accuracy range
with good linearity.
2. Overload capacity: input static pressure (common mode pressure)
and pressurerange ratio can up to 500: 1.
3. Safe and reliable: input pressure with large fluctuations, under
shock and vibration, the gauge also can work stable.
