High Precision Pressure Meter Water Gas Manometer Digital Pressure
Gauge
Description
The digital pressure gauge is mainly composed of a housing, a
pressure sensor and a signal processing circuit, and has the
advantages of high precision, good corrosion resistance, impact
resistance, shock resistance, small temperature drift, and good
stability; the micro power processor can be used to continuously
Use time

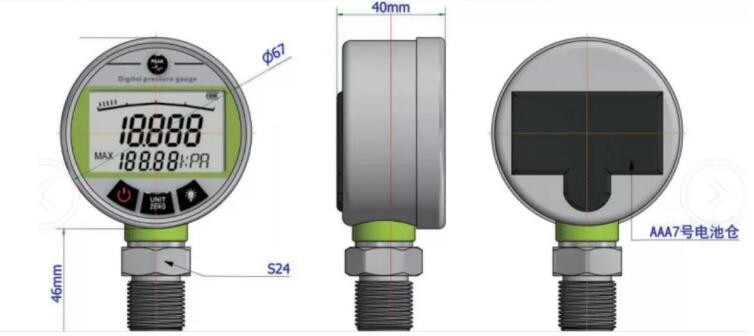

Detailed Image
Specification
| Range | -0. 1~0~ 100MPa | Accuracy | 0. 1 ,0.2 ,0.25,0.4 ,0.5 |
| Overload capacity | 1.5 times full | Pressure Type | Vacuum,Gauge,Absolute Pressure |
| Response time: | ≤50ms |
Battery voltage | AAA 7 batteries (3V),Lithium battery,External 220V/24V |
Display | up to 5 dynamic pressure display |
Measuring medium: | water, gas, etc. compatible with stainless steel |
| Medium temperature: | -20~80.C | Relative humidity | ≤ 80% |
| Connection size | M20x1.5 Male or oem | Pressure unit | MPa/KPa/Bar/Psi/mBar |
| Case material | ABS plastic | Working temperature: | - 10~60.C |
Features
1. The keys are made of rubber conductive keys, which are gentle to
touch, easy to rebound, and have a longer life span.
2 . The instrument interface use stainless steel, high hardness,
impact resistance, anti-rust and anti-fouling
3. FSTN large LCD screen, clear display, easy to read, viewing
angle and low temperature resistance performance is stronger than
ordinary STN
4 . Using high-precision imported AD chip, low power consumption
and fast processing speed
5. Optimized circuit design, reduce signal transmission loss,
accurate sensing, accurate measurement
6. One-key zero calibration, long press the zero key under
atmospheric pressure to calibrate the zero.
7 . The backlight time can be set freely. Long press the backlight
to adjust the duration of the backlight.
8 .Muti dispaly unit
likeMpa,kpa,bar,pa,mH2O,mmH2o,kg/cm2,psi,mmHg,mbar,in.Hg,in.WC
based on different Range,default 3-5 type.
Application
Used to petroleum, chemical industry, power plant, water supply of
town, Horologic exploration fields.
