Mini Range Alarm Digital Argon Flow Meter With LCD Display

Ask Lasest Price
Brand Name :	Yunyi
Model Number :	MF5700
Payment Terms :	T/T, Western Union
Supply Ability :	1pcs per week
Delivery Time :	5-8 work days

Add to Cart

Product Details
Company Profile

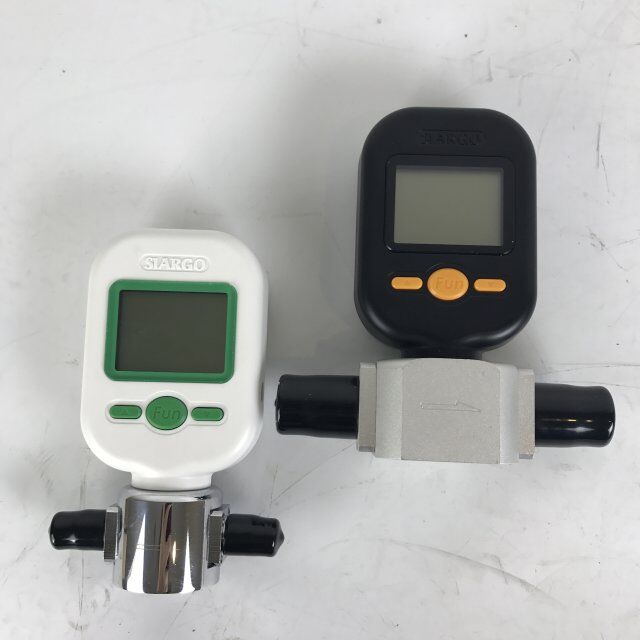

Mini Range Alarm Digital Argon Flow Meter With LCD Display

MF5700 Mini Mass Digital Argon Co2 Hydrogen Natural Gas Flow Meter

Description MF5700 Mini Mass Digital Argon Co2 Hydrogen Natural Gas Flow Meter

MF5700 series mass flow meters feature cost effective ultra low power operating on 4 AA batteries. The portable design has excellent exchangeable mechanical adaptors, easy data accessible and user programmable capabilities. The internal data storage can also help for many industrial on-site applications. The meters can be customized for various general purpose flow applications.

Features TMF5700 Mini Mass Digital Argon Co2 Hydrogen Natural Gas Flow Meter

Ultra low power by batteries or optional external AC adaptor

Potable design with rotatable meter head and easy exchangeable mechanical adaptors

Customizable flow range with over 30:1 turn-down

Rs485 Modbus protocol ready for networking

User programmable range alarm for safety and other monitoring1control functionality

1nternal data storage for additional data safety

Hygienic and oxygen safe copper body for various fluids

Parameter TMF5700 Mini Mass Digital Argon Co2 Hydrogen Natural Gas Flow Meter

Parameter	MF5706		MF5712	Unit
Flow Range	0 ~ 10’25		0 ~ 200	SLPM
Turn-down ratio		30:1
Accuracy		± (2.0+0.5FS)		%
Repeatability		0.5		%
Response Time		≤2		sec
Power Supply	4 AA batteries (LR6) / 6 ~ 15 Vdc (with 220 Vac adaptor)
output	RS 485 (optional)
Display	LCD
Display Units	1nstant flow rate: SLPM; Flow accumlation: NCM
1nstant Flow Rate Resolution	0.01			SLPM
Flow Accumlation Resolution	0.001			NCM
Continuous Working time	> 60 days (with batteries)
MaⅩ. Pressure	≤0.8			MPa
Working Temperature	-10 ~ +55			.C
Storage Temperature	-20 ~ +65			.C
Humidity	< 95%RH (No icing or condensation)
Keyboard	3 keys
User 1nterface	miniUSB
Calibration	Air @ 20 C,101.325 kPa
DN	6 12			mm
Mechanical Connection	NPT 1/4 NPT 1/2
Weight	350			g
