6000Psi CO2 Stainless Steel Air Regulator With Double Stage

Ask Lasest Price
Brand Name :	Yunyi
Model Number :	YR31
Certification :	CE
Price :	USD109-USD168/PC
Payment Terms :	L/C, D/A, D/P, T/T, Western Union
Supply Ability :	100PCS/week
Delivery Time :	7days

Add to Cart

Product Details
Company Profile

6000Psi CO2 Stainless Steel Air Regulator With Double Stage

6000psi Stainless Steel Water Air CO2 Gas Pressure Regulator

Description of 6000psi Stainless Steel Water Air CO2 Gas Pressure Regulator

YR31 Series stainless steel pressure regulator adopts piston type decompression structure, outlet pressure is stable, mainly used for high inlet pressure requirements, suitable forhigh purity gas, standard gas, corrosive gas, and other gas.

Design features of 6000psi Stainless Steel Water Air CO2 Gas Pressure Regulator

Double stage decompression structure
Valve body and diaphragm adopt hard seal form
The internal structure is easy to clean
Inside is equipped with filter
Can be panel mounted
Can choose needle valve, diaphragm valve for outlet

Basic parameters of 6000psi Stainless Steel Water Air CO2 Gas Pressure Regulator

Max inlet pressure	3000psi, 6000psig,10000psi
Outlet pressure	0-250psig, 0-500psig, 0-1500psig, 0-3000psig. 0-4000psi,0-6000psi
Safety testing pressure	1.5 times of maximum inlet pressure
Working temperature	-23℃~ 74℃(-10°F ~ 165°F)
Leakage rate	2*10-8 atm cc/sec He
CV value	0.02, 0.06, 0.08, 0.2 or other customized
Weight	About 1.5kg

Flow date

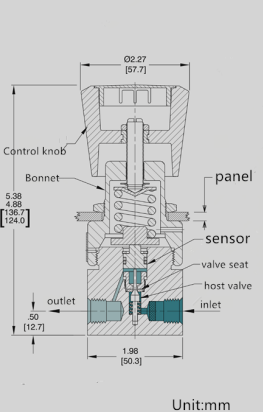

Outline drawing

Ordering information 6000psi Stainless Steel Water Air CO2 Gas Pressure Regulator

Model

Valve material

Inlet pressure

Outlet pressure

Pressure gauge

Inlet port

Outlet port

YR31

316L
Brass
Nickel-plated brass

0-10000psi
0-6000psig
0-3000psig
0-1500psig
0-1000psig

0-6000psig
0-4000psig
0-2000psig
0-1000psig
0- 500psig

With gauge (mpa)
With gauge (psig)
Without gauge

1/4'' NPT(F)

3/8'' NPT(F)

1/2'' NPT(F)

1/2'' NPT(M)

3/8'' fitting

Or custom

1/4'' NPT(F)

3/8'' NPT(F)

1/2'' NPT(F)

1/2'' NPT(M)

3/8'' fitting

Or custom
