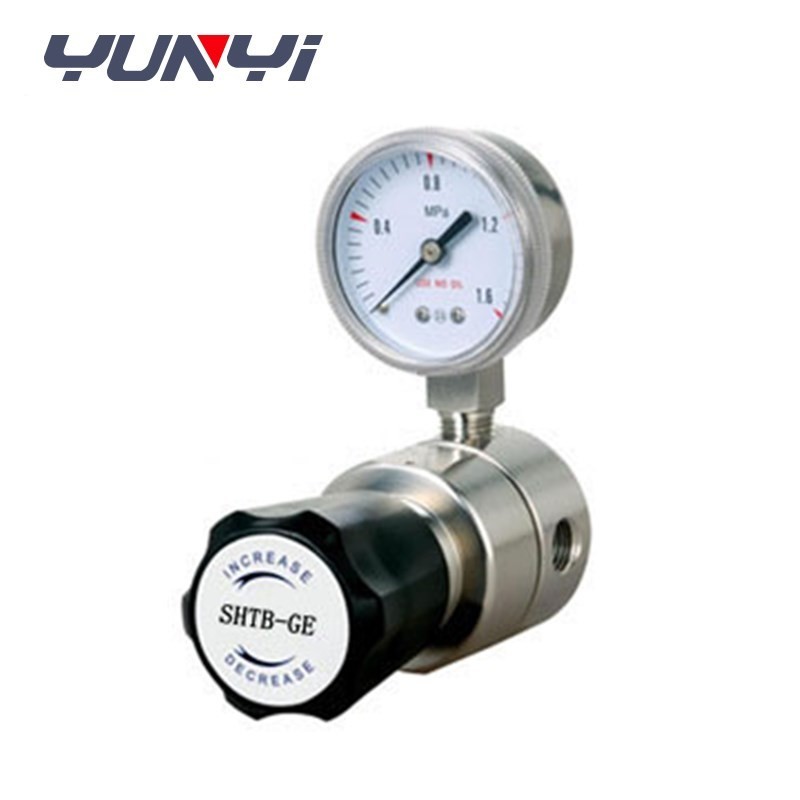

    YR31 Industrial Stainless Steel Pressure Regulator

    Ask Lasest Price
    Brand Name : yunyi
    Model Number : YR31 Series
    Price : $160/pcs
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : $162/pcs
    Delivery Time : 5-8days
    • Product Details
    • Company Profile

    YR31 Industrial Stainless Steel Pressure Regulator

    Description gas back pressure valve Stainless Steel Pressure Regulator for industrial field


    YR31 series back pressure regulator is with single-stage diaphragm vacuum structure, stainless steel diaphragm pressure transmission, the output pressure is stable, suitable for pure gases, standard gases, corrosive gases, liquids and other medium.


    Specifiction gas back pressure valve Stainless Steel Pressure Regulator for industrial field

    The maximum input pressure: 6000 psi

    Safety test pressure: 1.5 times max inlet pressure

    Applicable temperature: -40℉~+165℉(-40℃~+74℃)

    Leak rate: 2x10-8 atm cc/sec He

    CV value: 0.2

    Weight: About 1.5 kg

    Package size: 17cm*17cm*17cm

    Material: Stainless steel.

    Selection gas back pressure valve Stainless Steel Pressure Regulator for industrial field

    ModelValve materialInlet pressurePressure gaugeInlet portOutlet port
    YR32316L

    0-500psig

    0-100psig

    0-1500psig

    0-2500psig

    0-3000psig

    l With gauge (mpa)

    l With gauge (psig/bar)

    l Without gauge

    1/4'' NPT(F)

    3/8'' NPT(F)

    1/2'' NPT(F)

    1/2'' NPT(M)

    3/8'' fitting

    1/2'' fitting

    Or custom

    1/4'' NPT(F)

    3/8'' NPT(F)

    1/2'' NPT(F)

    1/2'' NPT(M)

    3/8'' fitting

    1/2'' fitting

    Or custom

    YR31 Industrial Stainless Steel Pressure RegulatorYR31 Industrial Stainless Steel Pressure RegulatorYR31 Industrial Stainless Steel Pressure Regulator
