Micro Gas Wind Differential Pressure Transmitter Differential Air
Pressure Transducer Sensor
Description of Micro Gas Wind Differential Pressure Transmitter
Differential Air Pressure Transducer Sensor
This Differential Air Pressure Transducer Sensor adopts
piezoresistive pressure sensor chip, and uses the film resistance
on the substrate to carry out zero point correction, zero point
temperature compensation and sensitivity compensation.
The high-performance and stable silicon chip package makes it high
static pressure resistance, anti-interference, stable and reliable.
The Differential Air Pressure Transducer Sensor can be applied to
the micro differential pressure field combination of various gas
measurement. Differential Air Pressure Transducer Sensor is an
ideal micro differential pressure measuring instrument in the field
of industrial automation.
Parameter of Micro Gas Wind Differential Pressure Transmitter
Differential Air Pressure Transducer Sensor
| Range | -10000pa~10000pa |
| Accuracy | 1.0% FS |
| Output signal | 4-20mA, 0-10V, RS485 modbus |
| Supply voltage | standard 24VDC, 12VDC~36VDC |
| Process connection | φ6 |
| Material | ABS plastic |
| Protection | IP65 |
| Application | Clean and dry air |
| Operating temperature | -20-80C |
| Safety overload | 150% |
| Ultimate Overload | 200% |
| Temperature drift | 0.02% FS / ° C |
| Long-term stability | 0.2% FS / Year |
Feature of Micro Gas Wind Differential Pressure Transmitter
Differential Air Pressure Transducer Sensor
Adjustable zero point and range connection
Reverse polarity protection and current limit protection
Anti-lightning and anti-radio frequency interference
Exquisite structure, beautiful appearance, convenient installation
Normalized design and production ensure the stable quality and
performance of the product
It can be designed or improved according to the specific
requirements of customers
Application of Micro Gas Wind Differential Pressure Transmitter
Differential Air Pressure Transducer Sensor
Measurement of wind pressure and flow velocity in industrial
process
HVAC
Furnace pressure or furnace negative pressure
Underground ventilation monitoring
Purification equipment and clean engineering
Smoke and dust control and environmental protection
Oven pressurization and furnace ventilation control
Medical instruments and equipment
Fan measurement and control

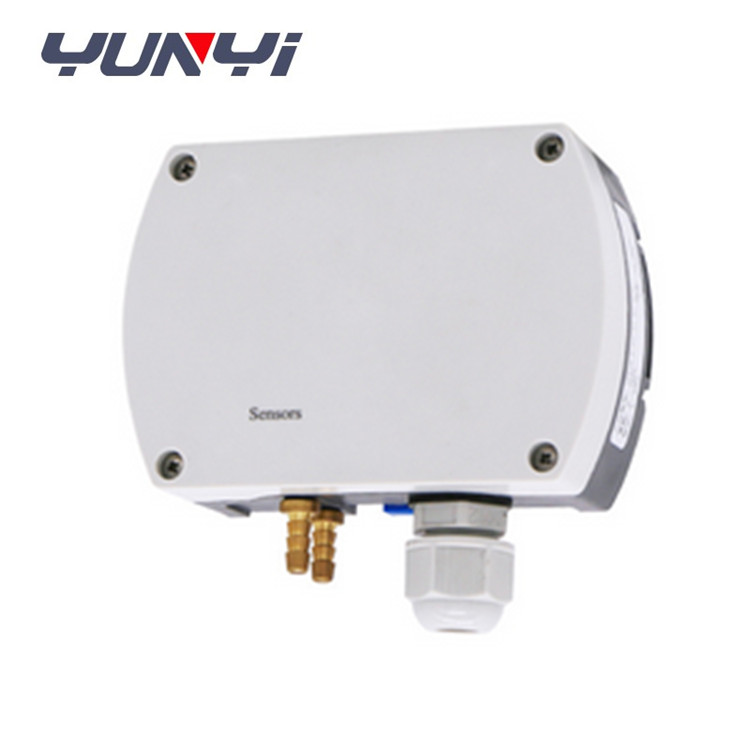

Detailed picture Micro Gas Wind Differential Pressure Transmitter
Differential Air Pressure Transducer Sensor
