Wireless Magnetostrictive Level Transmitter

Ask Lasest Price
Brand Name :	YUNYI
Model Number :	YLMW400
Certification :	CE, ROHS, ISO
Price :	140-180usd
Payment Terms :	T/T, Western Union, MoneyGram
Supply Ability :	100Sets per month
Delivery Time :	5-8 working days

Add to Cart

Product Details
Company Profile

Wireless Magnetostrictive Level Transmitter

Yunyi CE RoHS Certified Wireless Magnetostrictive Meter EU Market Compliance

Wireless Magnetostrictive Level Gauge utilizes magnetostrictive waveguide technology combined with industrial IoT architecture (LoRaWAN/NB-IoT/4G). Integrating waveguide sensing and wireless IoT communication, this level sensor delivers reliable data on level, interface, and temperature.

It detects minute stress waves caused by magnetic floats, achieving metering-grade performance. Suitable for chemical, energy, and LNG applications, its battery-powered and corrosion-resistant design ensures easy installation and long-term functionality without maintenance.

Specification

Model	YLMW400
Medium	Compatible liquid with the material
Medium pressure	-0.05 ~ 10MPa
Medium viscosity	0.5 ~ 2.0g/cm3
Resistance	adjustable between 0～24s
Maximum load	50×(power supply voltage-9)Ω
Dead zone	upper dead zone 50mm; bottom dead zone 50mm
Power influence	Iess than 0.005%/V of output range

Advantages

Delivers metrology-grade performance with ±0.05% FS accuracy and micron-level resolution, detecting minute level changes as small as 0.1mm to prevent measurement disputes.
Performs simultaneous three-parameter output--level, interface, and temperature (±0.5°C accuracy)--cutting system cost by 40% with integrated sensing.
Fully wireless with >8-year battery life (4 reports/day), IP68 rating, and lifetime calibration-free operation thanks to ultra-low temperature drift (<0.001%/°C).
Withstands extreme conditions from cryogenic -196°C to high temp 200°C (special types: -269°C), resisting condensation and boiling interferences.
Cloud-based diagnostics enable predictive alerts for float sticking, density deviation, and leakage, slashing unplanned downtime by 90%.

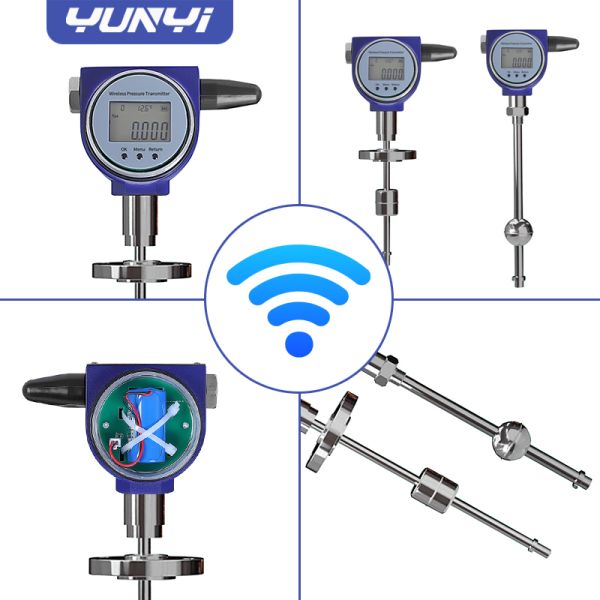

Wireless Magnetostrictive Meter product photo
