Product Description
Discover the Roots Flowmeter, also affectionately known as the gas
girdle flowmeter. This marvel of engineering is your ideal solution
for achieving precise liquid flow measurement in pipelines, whether
you require continuous or intermittent data. Renowned for its
exceptional accuracy and unwavering reliability, this flowmeter
embodies convenience with its lightweight design, ensuring easy
installation and operation. Coupled with a long lifespan and
whisper-quiet performance, the Roots Flowmeter is a testament to
advanced engineering that meets modern industrial needs.

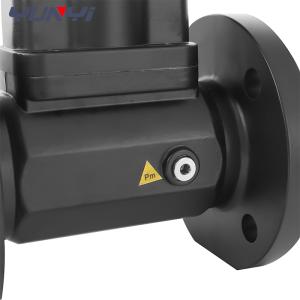

Detailed Images
Specification
Nominal Diameter
DN(mm) | Flow Range
(m3/h) | turbine wheel | Pressure (MPa) | Note |
| 50 | 6～65 | Aluminium Alloy | 1.6
2.5
4.0
6.3 | For pressure ≤1.6 MPa: Die-cast aluminum alloy
For pressure >1.6 MPa: Carbon steel or stainless steel |
| 10～100 |
| 10～160 |
| 80 | 8～160 |
| 13～250 |
| 20～400 |
| 100 | 13～250 |
| 20～400 |
| 32～650 |
| 150 | 32～650 |
| 50～1000 |
| 80～1600 |
| 200 | 50～1000 |
| 80～1600 |
| 130～2500 |
| 250 | 80～1600 | Carbon steel or stainless steel |
| 130～2500 |
| 200～4000 |
| 300 | 130～2500 |
| 200～4000 |
| 320～6500 |
Features
✓ High accuracy, excellent repeatability, and wide rangeability (up
to 1:20).
✓ Integrated rectifier design reduces straight pipe requirements
(Front ≥2DN, Rear ≥1DN).
✓ 360° rotatable volume corrector enables easy reading in various
installation configurations.
✓ Low rotational speed ensures long lifespan with low pressure loss
and high precision.
✓ Utilizes high-precision digital temperature sensors and
temperature-compensated digital pressure sensors, delivering
superior measurement stability with minimal temperature drift.
✓ Automatic Compensation: Features automatic temperature/pressure
detection with T.P.Z compensation, converting operating volume to
standardized flow values.
✓ Long Battery Life: Advanced micro-power consumption technology
enables extended operation via internal battery.
✓ Secure Data Management: High-capacity storage with anti-tamper
protection for critical parameter modifications and historical data
records.
✓ Power Failure Resilience: Real-time data retention safeguards
parameters permanently against power interruptions.
✓ Wireless Ready (Optional): Embedded GPRS/NB-IoT modules support
battery-powered wireless meter reading systems with daily data
transmission (1/day), eliminating need for external power.
Application
In the petroleum, chemical, metallurgy, water supply, paper and
other industries with a wide range of applications.
