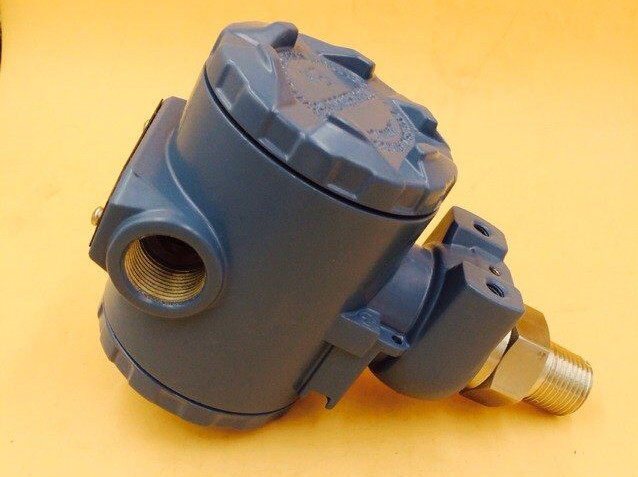

The 2088 Explosion Proof Smart Water Pressure Sensor Transmitter
Pressure Sensor is an advanced and highly reliable pressure
transmitter designed to meet the demanding requirements of
industrial applications. Developed using state-of-the-art sensor
technology and production equipment, it ensures exceptional
performance and durability.
The heart of this sensor is an imported quartz film pressure sensor
core, known for its sensitivity and accuracy. Through meticulous
assembly and rigorous testing following standard processes, the
sensor meets the technical specifications of similar imported
products, ensuring consistency and reliable compatibility in
industrial production. It's important to note that the sensor core
can be customized with a silicon piezoresistive core or ceramic
core to suit different application needs.
Here are the specifications of the Smart Water Pressure Sensor:
Through current: It has a rated range of 4-20mA and a limit range
of 24mA.
Temperature range: The rated operating range is 0-40℃, while the
limit working range extends from -20 to 50℃.
Relative humidity: It operates reliably in environments with
relative humidity ranging from 20% to 80%RH.
Display range: The sensor provides a display range of -1999 to
1999.
Accuracy grade: It achieves an accuracy of ±0.2%FS+1 word.
Display mode: Featuring a black LCD display, the characters have a
height of 8.5mm and a width of 4mm. It also supports the addition
of a backlight for enhanced visibility.
Panel size: The sensor has a diameter of 38mm and a height of 16mm.
Chassis size: With a diameter of 48mm and a thickness of 2mm, the
chassis is compact.
Fixing method: The chassis is securely fastened using screws.
The Smart Water Pressure Sensor offers the following features:
Wide pressure measurement range:
You can select from different pressure ranges including
-0.1~1.0MPa, 100MPa, or 300MPa, depending on your requirements.
Wide temperature measurement range: It supports a broad temperature
range, allowing for measurements in environments ranging from -60℃
to +300℃, depending on the specific variant chosen.
Wide measuring range of medium: The sensor is suitable for
measuring various gases, liquids, and steams made of stainless
steel and titanium alloy.
Communication mode: It provides options for analog output (4-20mA
or 1-10V) with HART Modbus 485 communication, enabling seamless
integration with control systems.
Laser marking for strong recognition: The sensor is marked with
laser technology, ensuring clear and durable identification.
Sealing method: You can choose between end face seal or double "O"
seal ring seal, allowing for effective protection against
environmental factors.
Strong expansion function: The sensor offers flexibility with
adjustable range, analog quantity, switch quantity, and optional
digital communication, catering to diverse application
requirements.
The integrated pressure-sensitive diaphragm: It utilizes an
oil-free design, avoiding issues such as oil filling and sticking.
The diaphragm also exhibits strong resistance to vibration and
impact, ensuring reliable performance in demanding environments.
