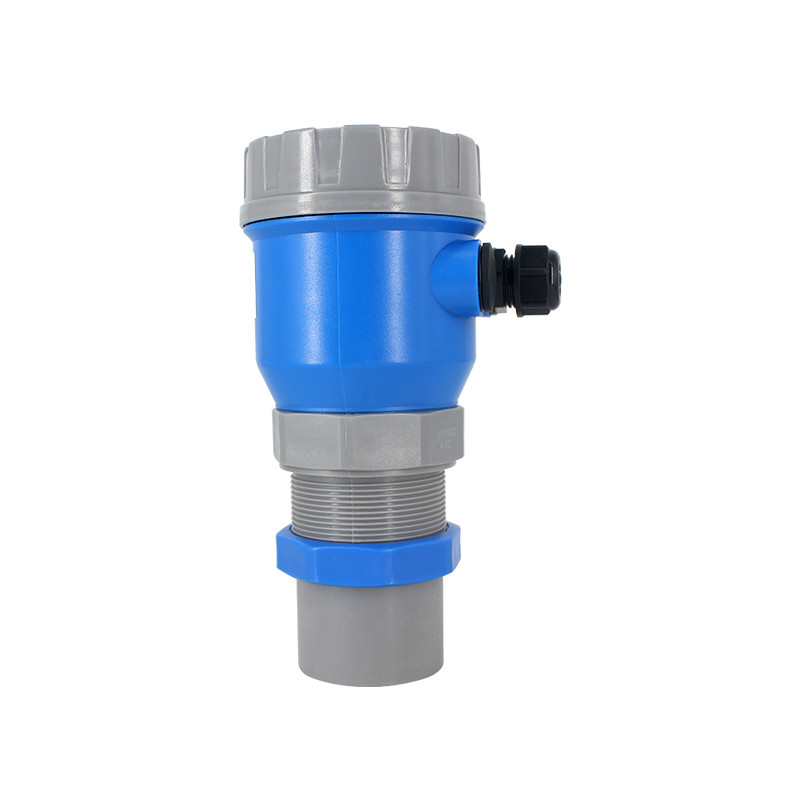

    Non Contact ABS Ultrasonic Level Meter Anti Interference

    Ask Lasest Price
    Brand Name : Yunyi
    Model Number : YD322-D
    Certification : CE
    Price : $129~$149.00/pc
    Payment Terms : D/P, L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 100pcs/week
    Delivery Time : 7 days
    • Product Details
    • Company Profile

    Non Contact ABS Ultrasonic Level Meter Anti Interference

    Non contact ABS Ultrasonic level meter


    The Ultrasonic level meter achieves advanced digital communication capabilities between machinery and operators. Its CPU incorporates imported industry-standard monolithic integrated circuits, digital temperature compensation, and wide voltage input range. Users have the flexibility to choose from analog, switch, or RS485 serial signal output options.


    One of its key advantages is its non-contact measurement capability, eliminating the need for physical contact with the substance being measured. This feature not only ensures greater precision but also extends the operational lifespan of the device.


    ApplicationFeatures
    Proximity DetectionHigh precision, Non-invasive, Anti-interference, Automatic temperature compensation, Selectable output way, Improved long-term stability
    Robot Range FinderHigh precision, Non-invasive, Anti-interference, Automatic temperature compensation, Selectable output way, Improved long-term stability
    Sedimentation PoolHigh precision, Non-invasive, Anti-interference, Automatic temperature compensation, Selectable output way, Improved long-term stability
    Coal Washing ProcessHigh precision, Non-invasive, Anti-interference, Automatic temperature compensation, Selectable output way, Improved long-term stability
    Obstacle Detection, Collision AvoidanceHigh precision, Non-invasive, Anti-interference, Automatic temperature compensation, Selectable output way, Improved long-term stability
    General-Purpose Distance DetectionHigh precision, Non-invasive, Anti-interference, Automatic temperature compensation, Selectable output way, Improved long-term stability
    Wastewater TreatmentHigh precision, Non-invasive, Anti-interference, Automatic temperature compensation, Selectable output way, Improved long-term stability

    Specification

    Full scale5m ,8m
    Unusable area≤0.4
    Max measure error0.25%×full scale
    Power12-24VDC
    Power consumption<1.5W
    Output signal4~20mA (other output is optional)
    Max load impedance700Ω
    Display panelOLED
    MaterialABS
    Fix modelM60X2 or ¢61MM
    DimensionΦ92mm×198mm×M60
    Protection degreeIP65
    Humidity0 to 95%
    Ambient temperature-10℃~60℃
    Ambient pressurenormal condition
