Plastic Handheld Flow Meter Ultrasonic Water Flow Sensor

Ask Lasest Price
Brand Name :	Yunyi
Model Number :	TUF-2000H
Certification :	/
Price :	$400~$800
Payment Terms :	T/T, Western Union
Supply Ability :	10/per week
Delivery Time :	10

Add to Cart

Product Details
Company Profile

Plastic Handheld Flow Meter Ultrasonic Water Flow Sensor

Description Handheld ultrasonic water flow meter plastic

This flowmeter is versatile and suitable for a wide range of applications. It can effectively measure various liquids including ultra-pure liquids, potable water, chemicals, raw sewage, reclaimed water, cooling water, river water, plant effluent, and more.

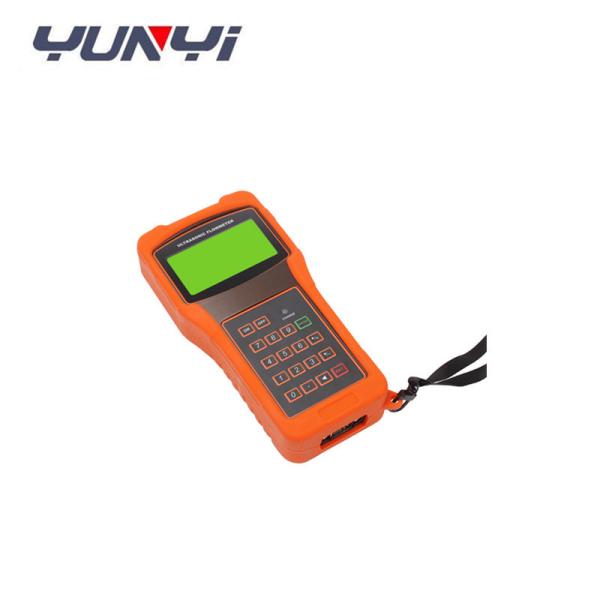

Detailed Images Handheld ultrasonic water flow meter plastic

Plastic Handheld Flow Meter Ultrasonic Water Flow Sensor

Specification Handheld ultrasonic water flow meter plastic

Items Performance & Parameter
Convertor	Principle	Transit- time ultrasonic flowmeter
	Accuracy	±1%
	Display	4×16 character LCD with backlight, support the language of Chinese, English and Italy
	Data Interface	Insulate Rs232 serial interface, upgrade the flowmeter software by computer
Pipe Installation Condition	Pipe Material	Steel, Stainless steel, Cast iron, Copper, Cement pipe, PVC, Aluminum, Glass steel product, liner is allowed
	Pipe Diameter	25~6000mm
	Straight Pipe	Transducer installation should be satisfied: upstream10D, downstream 5D, 30D from the pump
Measuring Medium	Type of Liquid	Single liquid can transmit sound wave, such as Water (hot water, chilled water, city water, sea water, waste water, etc.); Sewage with small particle content; Oil ( crude oil, lubricating oil, diesel oil, fuel oil, etc.); Chemicals ( alcohol, etc.); Plant effluent; Beverage; Ultra- pure liquids, etc.
	Temperature	- 30~160℃
	Turbidity	No more than 10000ppm and less bubble
	Flowrate	0~±10m/ s
Working Environment	Temperature	Convertor:- 20~60℃；Flow Transducer:- 30~160℃
Working Environment	Humidity	Convertor: 85% RH；Flow Transducer: Ip67
Power Consumption	1. 5W
Case Material	ABS

Features Handheld Ultrasonic Water Flow Meter Plastic China Price

Better than 1% accuracy.
0.2% of repeatability.
4 line LCD display.
Operate with clamp-on transducers.
Ni-MH Battery life for up to 12 hours continuous operation.

Applications Handheld Ultrasonic Water Flow Meter Plastic China Price

Water supply and drainage Heating

Construction of Energy-saving Metallurgy

Petrochemical Power
