0-6bar/10bar/16bar/25bar/40bar/70 China Mini Universal Vacuum
Absolute/Gauge 4-20ma Pressure Transmitter
measure pressure in both air and liquid mediums. It utilizes a high
sensitivity silicon pressure chip and employs a reliable amplifying
circuit with precise temperature compensation, ensuring its
long-term stability. This transmitter is suitable for various
industrial applications, providing accurate and reliable pressure
measurements. Its compact design makes it easy to install and use,
making it a popular choice for many industries. With its ability to
measure pressure ranging from 0-6bar to 70bar, this transmitter
offers a wide range of measurement capabilities.
Parameter of 0-6bar/10bar/16bar/25bar/40bar/70 China Mini Universal
Vacuum Absolute/Gauge 4-20ma Pressure Transmitter
| Measure Range | -100kPa~0.....10kPa...100MPa |
| Pressure Type | gauge (G), absolute (A), sealed gauge (S) |
| Overpressure | 150%FS |
| Accuracy | 0.1%FS, 0.25%FS, 0.5%FS (optional) |
| Output signal | 4-20mA(2-wire), 0-5V;1-5V;0.5-4.5V;0-10V(3-wire) |
| Supply | 12-36Vdc,12~36Vdc;15~30Vdc;15~36Vdc;15~36Vdc; |
| Temp.coefficient of zero | ±0.02%FS/°C(typ.) ±0.03%FS/°C(max.) |
| Temp.coefficient of span | ±0.02%FS/°C(typ.) ±0.03%FS/°C(max.) |
| Compensated temperature range | -10~+70°C |
| Operating temperature range | -40~+125°C |
| Storage temperature range | -40~+125°C |
| Insulating resistance | ≥100MΩ@100Vdc |
| Load resistance | R≤(U-15)/0.02 (for 4/20mA) R>100kΩ(for voltage output) |
| Electrical interface | DIN43650, option 1.5m cable connetion |
| Pressure interface | G1/2,M20x1.5,G1/4, 1/4NPT, 1/2NPT(customer request) |
| Material of pressure membrane | 316L stainless steel |
| Material of housing | 1Cr18Ni9Ti stainless steel |
| Response time(10%~90%) | ≤10ms |
| Shock/impact | 10gRMS,(20~2000)Hz/100g,11ms |
| Protection | IP65 |
The China Mini Universal Vacuum Absolute/Gauge 4-20ma Pressure
Transmitter boasts a wide measurement range and is constructed
entirely from stainless steel. It offers protection against water
and dust with an IP65 rating and provides various output signals.
This transmitter has received CE Certification, ensuring its
compliance with European safety standards. Its marking of ExiaIICT6
indicates its suitability for use in explosive environments. The
device also features scene adjustability, allowing for
customization based on specific application needs.
In terms of applications, this pressure transmitter is widely used
in industries such as petroleum, chemicals, metallurgy, electric
power, and hydrology. It also finds utility in the boat and
shipbuilding industry, as well as in the aviation sector.
Additionally, it is employed in hydraulic pressure and pneumatic
control systems, making it a versatile solution for pressure
measurement across various sectors.

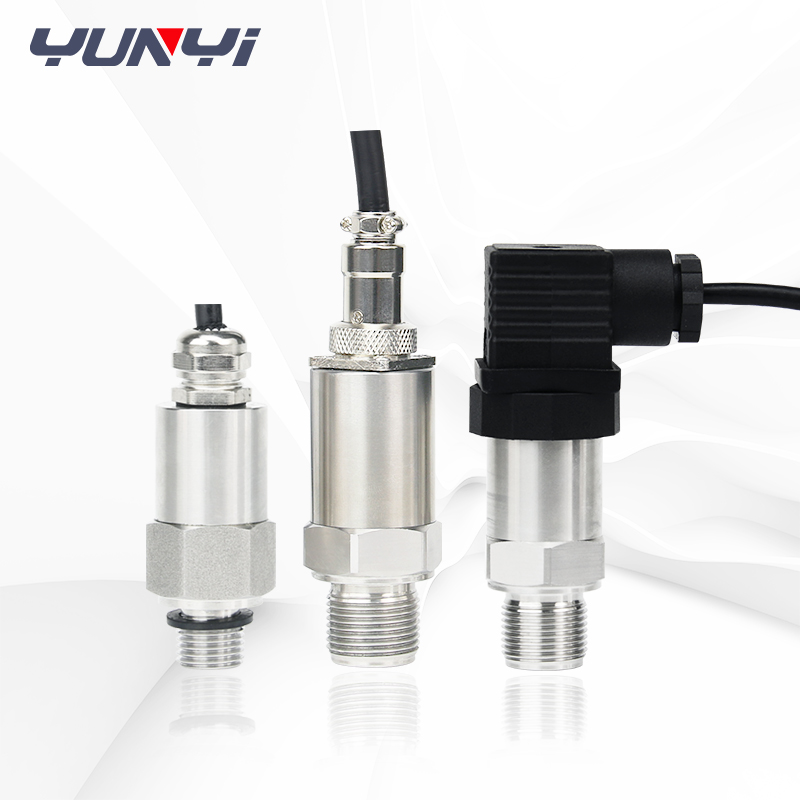

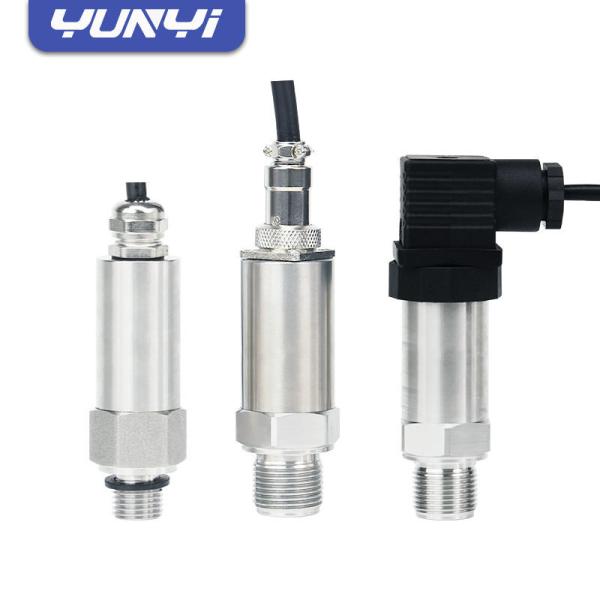

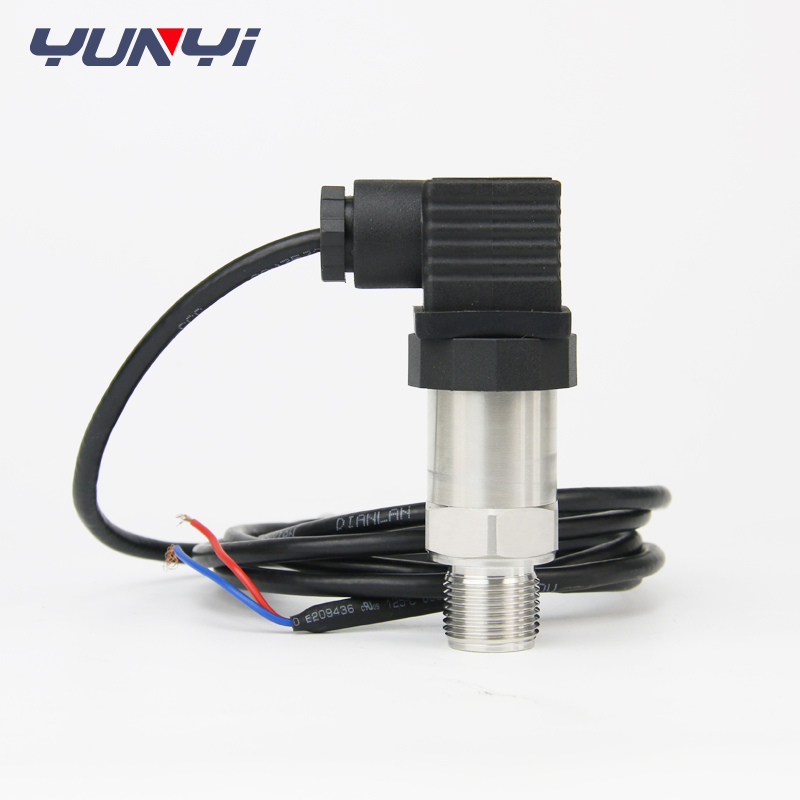

Detailed picture 0-6bar/10bar/16bar/25bar/40bar/70 China Mini
Universal Vacuum Absolute/Gauge 4-20ma Pressure Transmitter
